Mazak launches laser automation cell

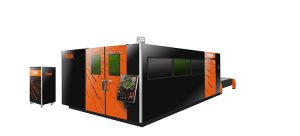

Yamazaki Mazak unveiled its latest laser automation cell at Blechexpo in Stuttgart last week. The OPTIPLEX 3015 DDL 4.0 kW laser processing machine features Direct Diode Laser technology unique to Mazak, complete with a new robotic automation system. Those requiring ultra-fast cutting and high-quality edges are set to benefit most.

According to Mazak, the OPTIPLEX DDL series can cut thin material 20% faster than fibre lasers, and thick materials with high surface quality. The machine has an axis acceleration of 1.8 G and benefits from rapid traverse rates of 120 m/min. Positioning accuracy is maintained to within ±0.05 mm per 500 mm in the X and Y axes, and to within ±0.01 mm per 100mm in the Z axis. The machine also offers repeatability accuracy of ±0.03 mm in the X, Y and Z axes.
Crucially, the OPTIPLEX DDL is a machine capable of a wall plug efficiency of 40-50%, compared with 10% for a CO2 resonator, 15-20% for a disc resonator and 30-40% with a fibre resonator.
At Blechexpo, the machine on display was shown as part of a new automation cell that incorporates a robotic arm mounted to rails adjacent to the cutting table, to load and unload workpieces. The arm can quickly change between sorting tools – which are mounted directly to the robot’s base – depending on application and the size and weight of the workpiece. To deliver fast and accurate machining, the cell’s laser table is equipped with an automatic clamp to secure the workpiece’s position on the table. This is especially useful for cutting thin vinyl-protected material.
For further information www.mazakeu.co.uk
